ZE-TECH Flex PCB Products

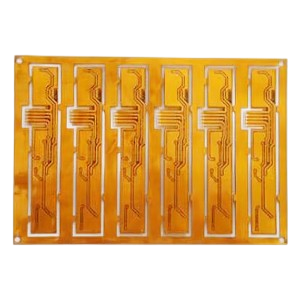

Layer :1
Board thickness: 0.13mm
Material: Polyimide
Copper thickness: 1/2 oz
Surface treatment: ENIG
Application: Consumer electronics
Minimum line width/line spacing: 0.12mm/0.1mm
Minmum drilling: 0.2mm

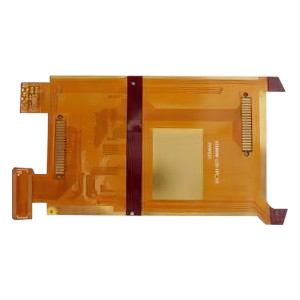

Layer :2
Board thickness: 0.15 mm
Material: Polyester
Copper thickness: 1/3 oz
Surface treatment: ENIG
Application: Industrial control
Minimum line width/line spacing: 0.16mm/0.12mm
Minmum drilling: 0.25mm

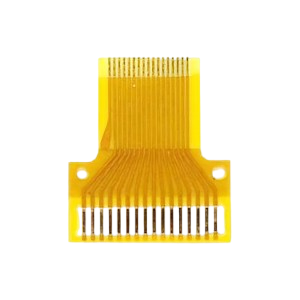

Layer :4
Board thickness: 0.25 mm
Material: Polyester
Copper thickness: 1 oz
Surface treatment: ENIG
Application: Medical devices
Minimum line width/line spacing: 0.18mm/0.2mm
Minmum drilling: 0.3mm

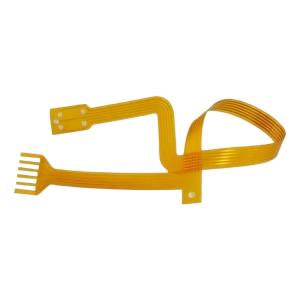

Layer :6
Board thickness: 0.29mm
Material: Polyimide
Copper thickness: 2 oz
Surface treatment: Immersion Tin
Application: Consumer electronics
Minimum line width/line spacing: 0.23mm/0.3mm
Minmum drilling: 0.35mm

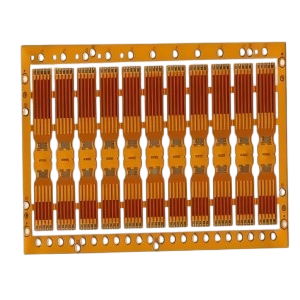

Layer :8
Board thickness: 0.2mm
Material: Polyimide
Copper thickness: 1/3 oz
Surface treatment: ENIG
Application: Automotive electronics
Minimum line width/line spacing: 0.075mm/0.1mm
Minmum drilling: 0.35mm
Stiffener: FR4

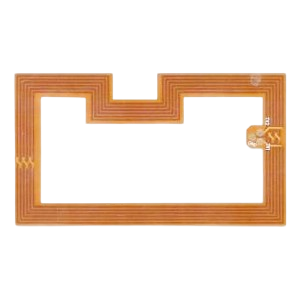

Layer :6
Board thickness: 0.2mm
Material: Polyimide
Copper thickness: 1 oz
Surface treatment: Immersion Gold
Application: Medical devices
Minimum line width/line spacing: 0.3mm/0.31mm
Minmum drilling: 0.25mm
