In modern manufacturing, precision is no longer a competitive advantage—it’s a basic requirement. Whether producing prototypes or large-volume parts, accurate inspection ensures that every product meets tight tolerances, stable performance, and global quality standards.
At ZE-TECH MOLD, measurement is integrated into every stage of production. This article explores the most widely used inspection equipment in professional machining and injection-molding factories: CMM (Coordinate Measuring Machine), 2D Vision Measuring Systems, Height Gauges, and Surface Roughness Testers.

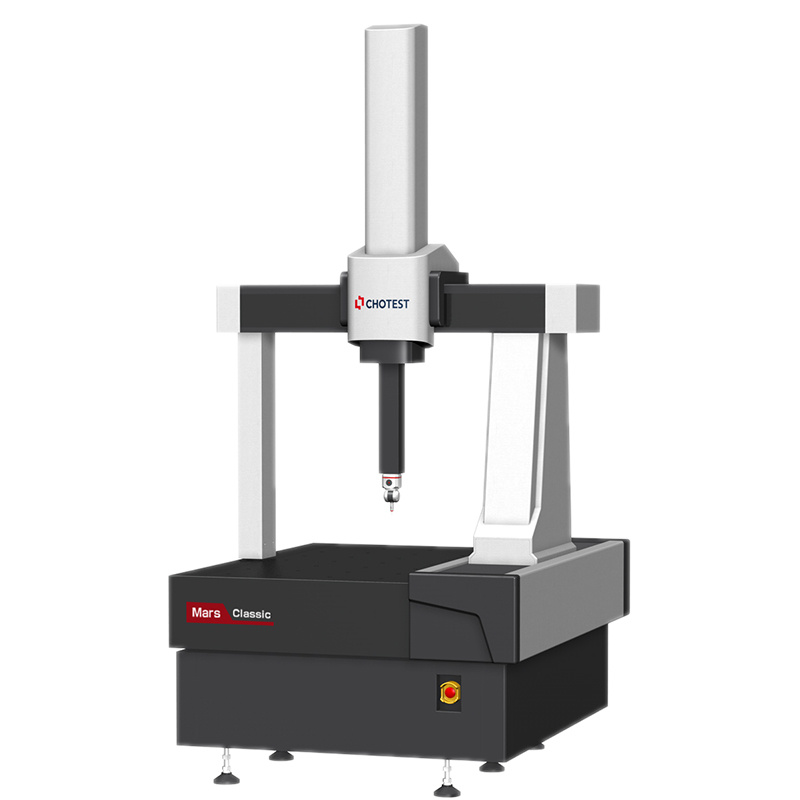

1. Coordinate Measuring Machine (CMM): The Gold Standard for 3D Accuracy
CMMs are the backbone of precision inspection. Using a probe to capture 3D coordinates, CMMs create highly accurate geometric measurements used for molds, CNC parts, high-tolerance metal components, and plastic parts.
Key Capabilities
- Accuracy up to ±2 µm (depending on size and model)
- Full 3D measurement: planes, cylinders, spheres, GD&T
- Creates point-clouds for comparing parts with CAD models
- Measures deep cavities, complex surfaces, internal features
Typical Applications
| Industry | CMM Application |
|---|---|
| Automotive | Gear housings, engine parts, molds |
| Consumer Electronics | Structural frames, lens parts |
| Robotics | Precision aluminum parts, joints, brackets |
| Medical | Surgical instrument accuracy confirmation |
2. 2D Vision Measuring Machine
While CMMs excel in 3D, VMMs shine in 2D profile measurement. Using non-contact optical imaging, they are ideal for delicate or small components where probes cannot reach.
Key Advantages
- Non-contact measurement prevents deformation
- Excellent for soft plastics, silicone, and thin metal parts
- Sub-micron resolution for small features
- Perfect for fast, repeated batch inspection
What It Measures
- Contours & profiles
- Thickness, distance, radii
- Hole diameter & pitch
- 2D GD&T
3. Height Gauge (Altimeter): Reliable Dimensional Verification
Height gauges are widely used in machining workshops for fast dimensional checks.
Why It Matters
- Efficient for measuring height, step, depth
- Essential for daily dimensional confirmation
- Often used for in-process inspection during CNC machining
Accuracy generally falls in the ±1–3 µm range, depending on type (digital or manual).
4. Surface Roughness Tester: Ensuring Functional & Visual Quality
Surface finish directly impacts a product’s:
- Assembly performance
- Sealing quality
- Wear behavior
- Appearance
A roughness tester quantifies Ra, Rz, Rt and ensures parts meet the required surface standards.
Common Standards
| Standard | Roughness Range |
|---|---|
| Polished (mirror) | Ra 0.2–0.4 µm |
| CNC-milled | Ra 0.8–1.6 µm |
| Bead-blasted | Ra 1.6–3.2 µm |
5. Why Professional Inspection Is Essential
Avoiding Manufacturing Defects
- Dimensional deviation → poor assembly
- Warpage → mold mismatch
- Inaccurate hole distance → part failure
Ensuring Repeatable Quality
High-precision measurement equipment provides traceable data, ensuring every batch meets the same standard.
Boosting Customer Confidence
Clients rely on consistent reports to verify quality:
- Full measurement reports
- First Article Inspection (FAI)
- CPK & mass-production capability reports
6. ZE-TECH MOLD’s Quality Control Workflow
To ensure consistent quality, all parts go through:
① Incoming Materials Inspection (IQC)
- Material certificate check
- Hardness verification
- Dimensions verification
② In-Process Inspection (IPQC)
- CNC machining step inspection
- Tool-wear monitoring
- Random & critical-point checking
③ Final Inspection (FQC)
- Full measurement report
- CMM/VMM verification
- Surface finishing verification
④ Shipping Inspection
- Packaging check
- Damage prevention test
7. Example: When Do We Use CMM vs. VMM?
| Type of Part | Best Inspection Tool | Reason |
|---|---|---|
| Complex 3D aluminum CNC part | CMM | Requires 3D tolerance, cavity measurement |
| Thin plastic cover | VMM (Vision) | Non-contact avoids deformation |
| Mold core & cavity | CMM | Deep geometric measurement |
| Small stamped metal parts | VMM | Batch inspection, fast speed |
| Shaft, step, height | Height Gauge | Quick, stable, easy to verify |
Conclusion: Precision Measurement Drives Quality Manufacturing
High-precision inspection is not just a final step—it’s a core part of manufacturing. Tools like CMM, VMM, height gauges, and roughness testers guarantee that every part is produced to print, every dimension matches the design, and every shipment meets global standards.
At ZE-TECH MOLD, we combine advanced equipment with strict QC workflows to support clients in automotive, robotics, consumer electronics, industrial products, and beyond.
If you need high-quality CNC machining, molds, or custom manufacturing with professional measurement reports, feel free to contact us.
