In the world of precision manufacturing, thermoforming and vacuum forming are two widely used processes for creating high-quality plastic components. While these terms are sometimes used interchangeably, they are not identical. Understanding their differences is crucial for manufacturers, designers, and engineers looking to choose the right method for their projects. At ZE-TECH MOLD, we specialize in advanced manufacturing solutions, including CNC machining and mold-making, and we’re here to clarify these processes to help you make informed decisions. This blog breaks down the distinctions between vacuum forming and thermoforming, their applications, advantages, and limitations, optimized for clarity and industry relevance.
What is Thermoforming?
Thermoforming is a broad manufacturing process that involves heating a plastic sheet until it becomes pliable, then shaping it into a desired form using a mold. Once formed, the plastic is cooled and trimmed to create the final product. Thermoforming encompasses various techniques, including vacuum forming, pressure forming, and twin-sheet forming, making it a versatile method for producing parts ranging from simple trays to complex automotive components.
Key Steps in Thermoforming:
- Heating: A plastic sheet (e.g., ABS, PVC, or PETG) is heated to a pliable state, typically between 250°F and 350°F, depending on the material.
- Forming: The softened sheet is shaped over a mold using vacuum, pressure, or mechanical force.
- Cooling and Trimming: The formed part is cooled to retain its shape, then trimmed to remove excess material.
Types of Thermoforming:
- Vacuum Forming: Uses suction to pull the plastic sheet onto the mold.
- Pressure Forming: Applies positive air pressure for sharper details and textures.
- Twin-Sheet Forming: Bonds two heated sheets for hollow or double-walled parts.

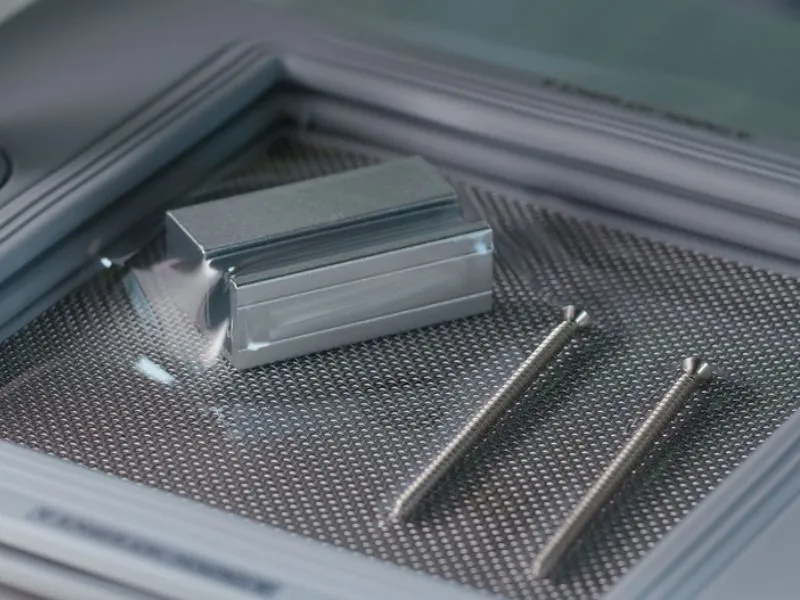

What is Vacuum Forming?
Vacuum forming is a specific subset of thermoforming. It involves heating a plastic sheet and using a vacuum to draw it tightly against a mold, creating the desired shape. This method is simpler and more cost-effective than other thermoforming techniques, making it ideal for low- to medium-volume production of large, shallow parts like packaging or trays.
Key Steps in Vacuum Forming:
- Heating: The plastic sheet is heated until soft and flexible.
- Vacuum Application: A vacuum pump removes air between the sheet and the mold, forcing the plastic to conform to the mold’s shape.
- Cooling and Release: The part cools, solidifies, and is removed from the mold, followed by trimming.
Key Differences Between Vacuum Forming and Thermoforming
While vacuum forming is a type of thermoforming, the broader thermoforming category includes additional techniques that offer greater versatility. Below are the primary distinctions:
| Aspect | Vacuum Forming | Thermoforming (General) |
|---|---|---|
| Definition | A subset of thermoforming using vacuum suction. | A broader process including vacuum, pressure, and other forming methods. |
| Complexity | Simpler, single-sided molding. | More complex, supports multi-sided molding and advanced techniques. |
| Precision and Detail | Limited to basic shapes with less intricate details. | Offers high precision with pressure forming for detailed textures. |
| Cost | Lower cost, ideal for prototyping and low-volume runs. | Higher cost for advanced methods like pressure or twin-sheet forming. |
| Applications | Packaging, trays, signage, simple enclosures. | Automotive parts, medical equipment, complex panels, and enclosures. |
| Material Thickness | Best for thinner sheets (0.020–0.250 inches). | Handles thicker sheets (up to 0.5 inches or more) for robust parts. |
| Production Speed | Faster for simple parts. | Varies depending on technique; pressure forming may be slower. |
Advantages and Limitations
Vacuum Forming
Advantages:
- Cost-Effective: Lower tooling and setup costs make it ideal for startups or small-batch production.
- Speed: Quick turnaround for prototyping or simple designs.
- Versatility: Works with a wide range of thermoplastics like ABS, polystyrene, and acrylic.
Limitations:
- Limited to single-sided molds, restricting design complexity.
- Less suitable for parts requiring high precision or intricate textures.
- Thinner materials may lead to weaker structural integrity.
Thermoforming (General)
Advantages:
- High Precision: Pressure forming allows for detailed textures and tight tolerances, rivaling injection molding.
- Versatile Applications: Suitable for complex parts in industries like aerospace, automotive, and medical.
- Scalability: Twin-sheet forming enables hollow, lightweight, and durable parts.
Limitations:
- Higher tooling costs for advanced methods like pressure forming.
- Slower production for complex processes compared to vacuum forming.
- Requires skilled operators for optimal results.
Applications in Industry
- Vacuum Forming: Commonly used for disposable packaging (e.g., food trays), retail displays, and lightweight covers. For example, ZE-TECH MOLD uses vacuum forming for cost-effective prototyping of CNC-machined mold designs.
- Thermoforming: Preferred for durable, high-detail parts like automotive dashboards, medical device housings, and aircraft interior panels. Its ability to handle thicker materials makes it ideal for structural components.
Choosing the Right Process for Your Project
Selecting between vacuum forming and thermoforming depends on your project’s requirements:
- Budget and Volume: Choose vacuum forming for low-cost, low-volume runs or prototypes.
- Design Complexity: Opt for thermoforming (e.g., pressure forming) if you need intricate details or multi-sided parts.
- Material and Durability: Thermoforming supports thicker, stronger materials for demanding applications.
- Industry Needs: Automotive and medical sectors often require thermoforming’s precision, while packaging leans toward vacuum forming.
At ZE-TECH MOLD, we integrate both processes with our CNC machining expertise to deliver tailored solutions. Whether you need rapid prototypes or high-precision molds, our team can guide you to the best method.
Conclusion
Vacuum forming and thermoforming are powerful tools in modern manufacturing, each with unique strengths. Vacuum forming excels in simplicity and cost-efficiency, while thermoforming offers versatility and precision for complex applications. By understanding their distinctions, you can make informed decisions to optimize your production process. Ready to explore these techniques for your next project? Visit www.zetechmold.com to learn how ZE-TECH MOLD can support your manufacturing needs with sustainable, high-quality solutions. Subscribe to our blog for more insights on precision manufacturing!
